STEP 0 : Enter Project No.
█ Project Name
STEP 1 : Enter Application Information

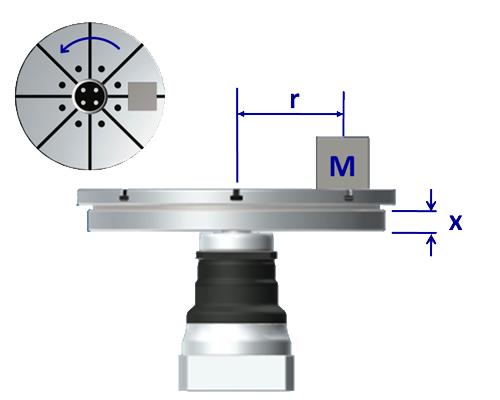

Turning Table Direct Drive
█ Weight of Load
M
(kg)
█ Acceleration Time
ta
(sec)
█ Running Time
tr
(sec)
█ Deceleration Time
td
(sec)
█ Idle Time
ti
(sec)
█ Rotation Angle per Cycle
θ
(Degree)
█ Diameter of Table
D0
(mm)
█ Thickness of Table
B0
(mm)
█ Density of Table
(g/cm
3
)
█ Distance of Load to Center
r
(mm)
█ Table Gravity Center to Gearbox Flange
x
(mm)
█ Coefficient of Friction
