STEP 0 : Enter Project No.
█ Project Name
STEP 1 : Enter Application Information

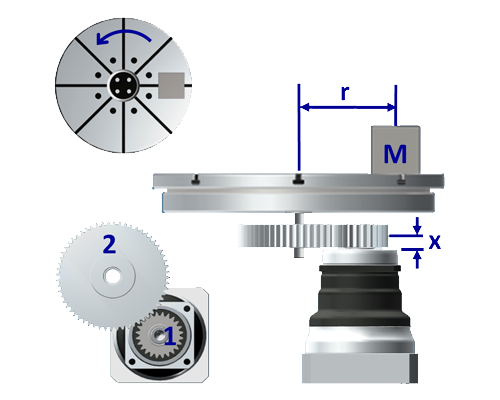

Turning Table with Gear Drive
█ Acceleration Time
ta
(sec)
█ Running Time
tr
(sec)
█ Deceleration Time
td
(sec)
█ Idle Time
ti
(sec)
█ Rotation Angle per Cycle
θ
(Degree)
█ Diameter of Gear1
D1
(mm)
█ Thickness of Gear1
B1
(mm)
█ Diameter of Gear2
D2
(mm)
█ Thickness of Gear2
B2
(mm)
█ Density of Gear
(g/cm
3
)
█ Pressure Angle of Gear
α
(Degree)
█ Helix Angle of Gear
β
(Degree)
█ Weight of Load
M
(kg)
█ Diameter of Table
D0
(mm)
█ Thickness of Table
B0
(mm)
█ Density of Table
(g/cm
3
)
█ Efficiency of Gear Coupling
%
█ Distance of Load to Center
r
(mm)
█ Input Gear Center to Gearbox Flange
x
(mm)
█ Coefficient of Friction
