STEP 0 : Enter Project No.
█ Project Name
STEP 1 : Enter Application Information

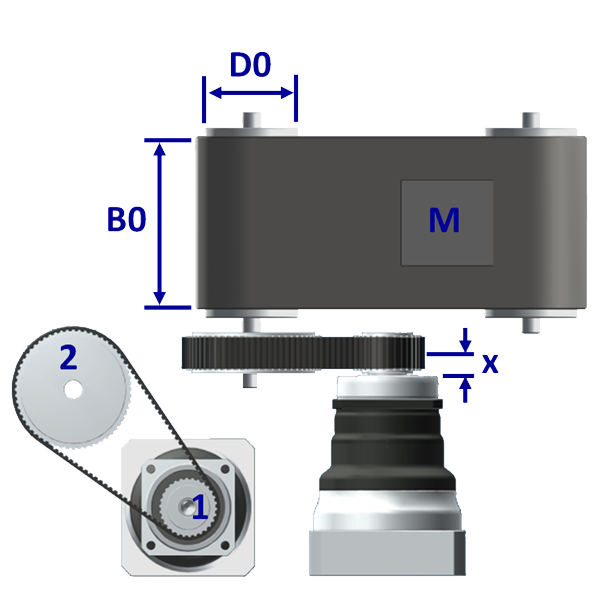

Conveyor Belt with Pulley Drive
█ Weight of load
M
(Kg)
█ Velocity
V
(m/s)
█ Acceleration time
ta
(sec)
█ Running time
tr
(sec)
█ Deceleration time
td
(sec)
█ Idle time
ti
(sec)
█ Angle from Horizon
θ
0˚
90˚
other
(Degree)
(＋:upwards －:downwards)
█ Diameter of Wheel
D0
(mm)
█ Width of Wheel
B0
(mm)
█ Density of Wheel
(g/cm
3
)
█ Diameter of Input Pulley 1
D1
(mm)
█ Diameter of Output Pulley 2
D2
(mm)
█ Width of Input Pulley 1
B1
(mm)
█ Width of Output Pulley 2
B2
(mm)
█ Density of Input Pulley 1
(g/cm
3
)
█ Density of Output Pulley 2
(g/cm
3
)
█ Pulley Belt Center to Gearbox Flange
x
(mm)
█ Coefficient of Friction
